Advanced Wash Water Recycling for Heavy Equipment Cleaning

Next-Generation Wash Water Treatment Technology

Efficiently treat and recycle wash water from heavy equipment cleaning using ElectroPulse Electrocoagulation Technology. This chemical-free solution eliminates the need for filters and effectively removes:

Heavy Metals
Oil & Grease
Suspended Solids
Bacteria
No Filters Required

Reduce Waste. Save Water. Stay Compliant.

ElectroPulse offers a cost-effective way to treat contaminated wash water. The treated water can be reused for equipment washing or safely discharged in compliance with environmental regulations.

Trusted for Over 29 Years in Wash Water Solutions

Powered by OilTrap Environmental Inc.

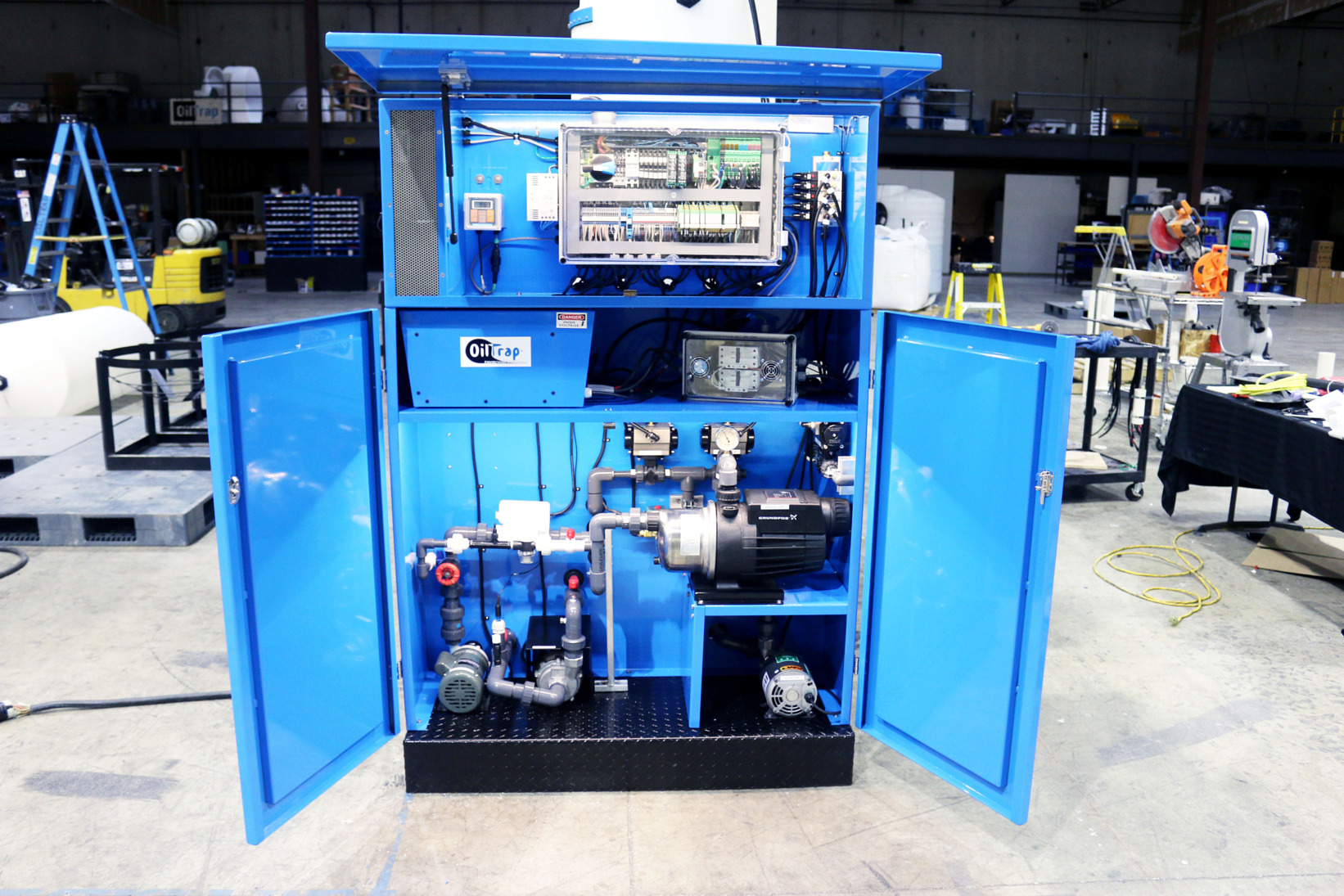

ElectroPulse Wash Water Treatment System

Electrocoagulation Technology for Heavy Equipment and Fleet Wash Water Recycling

The ElectroPulse Electrocoagulation System, manufactured by OilTrap Environmental Inc., delivers a powerful, chemical-free method to treat wash water from cleaning heavy-duty equipment. This innovative electrical-based solution eliminates the need for filters, separation chemicals, or settling tanks—offering a low-maintenance and cost-effective alternative to traditional filtration methods.

Proven to remove emulsified oils, greases, suspended solids, and heavy metals, ElectroPulse is ideal for truck wash operations, construction equipment yards, and industrial wash bays. Operating costs are as low as ½ cent per gallon or $5.00 per 1,000 gallons of water treated.

Benefits of the ElectroPulse System

Rapidly removes suspended solids from wash water
Produces cleaner water for extended equipment life
No filters to replace, clog, or backwash
Low-maintenance design with fully automated controls
Easily meets regulatory discharge compliance
Requires no treatment chemicals other than pH control
Recycles treated water for reuse or zero-discharge applications

Easy to Operate & Maintain

Touch Screen Interface
Wi-Fi Connectivity with Factory Support
- Remote diagnostics
- Programming and system updates
- Operator training access

Wash Bay Best Practices for Containment & Treatment

01

Dry Dirt Removal
Remove large chunks of dirt before washing to reduce solids in water and simplify downstream treatment.
02

Pre-Wash Pad Setup
Use a water blaster (25 GPM @ 500 PSI) to pre-clean equipment. Water drains into a designated pit and is recycled through the ElectroPulse system to maintain clean water quality for future use.
03

Solids Dewatering & Removal
Sludge settles in a drive-in pit and can be vacuumed or pumped into dewatering containers. Dry solids are safely discarded.

04

Detail Wash & Degreasing
Clean equipment with 2,000–3,000 PSI hot water pressure. Contaminated runoff is routed through the ElectroPulse system for treatment.
05

Advanced Water Treatment
Contaminated water flows through the ElectroPulse system, removing solids, oils, grease, and heavy metals. The resulting clean water is reused or discharged safely—ensuring compliance and reduced water usage.

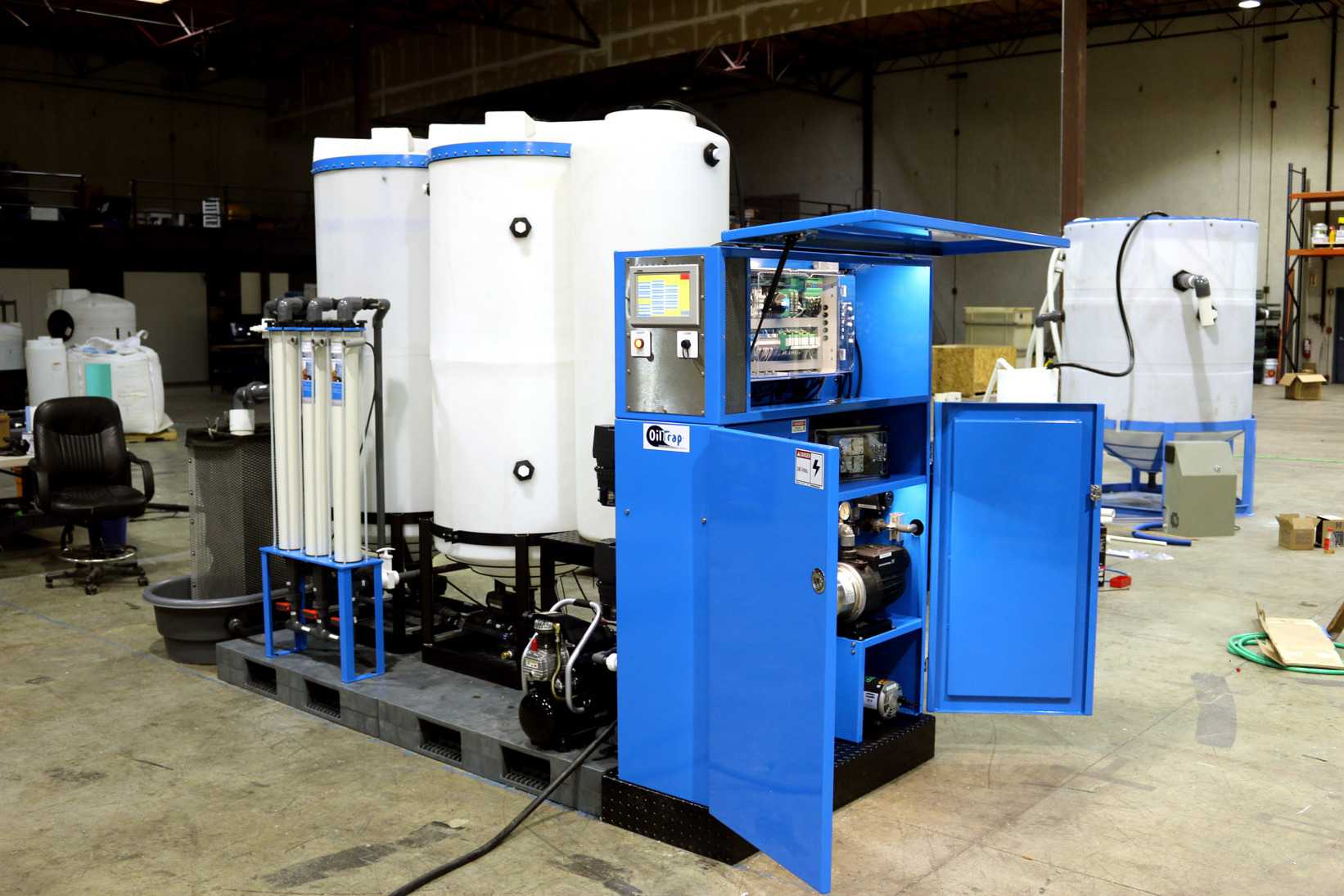

OilTrap Industrial Water Treatment Systems

Advanced Electrocoagulation Systems with Touchscreen Control

All-New System Designs. Built for Performance.

With over 23 years of industry innovation, OilTrap Environmental Products, Inc. introduces the most advanced electrocoagulation water treatment systems to date. Engineered for industrial wash water recycling, these next-generation systems feature streamlined designs and cutting-edge technology for unmatched ease of use and maintenance.

Easy Access. Smart Control. Clean Design.

Each system now includes a 10” touchscreen interface for intuitive control and real-time diagnostics. These large, easy-to-read screens simplify operations, allowing you to monitor your entire OilTrap water treatment process with minimal training.

Quick setup. Smart automation. Enhanced reliability.

Compact, Integrated Control Center

Every unit is built with OilTrap’s signature design features:

Custom power supplies
External pumps
Programmed pH adjustment
Easy-to-service and compact layout.

System Features – OilTrap Electrocoagulation Water Treatment

Proprietary Electro-Cells – Zero Maintenance
Our OilTrap Signature Electro-Cells require no scaling, scraping, or cleaning—ensuring consistent performance without downtime.

Cone Bottom Tanks – Simplified Drainage
Designed for easy washout and winterization, cone bottom tanks eliminate the hassle of vacuuming flat-bottom tanks.

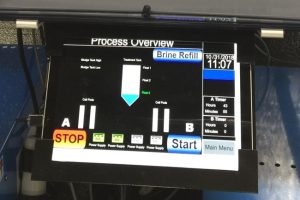

Easy-to-Use Operator Interface
Activate the system with a single on/off button. The integrated 10″ touchscreen requires less than 5 minutes of training and handles operations automatically.

Compact, Custom-Built Power Supplies
Engineered by OilTrap for electrocoagulation efficiency, our power supplies are compact and powerful—offering twice the performance in a footprint one-quarter the size.

Built for Durability & Simplicity

External, corrosion-resistant pumps
No moving parts inside tanks—just precision level sensors
Air valves auto-close on power loss to prevent overflow

Advanced Water Treatment Capabilities

Automated & Integrated pH Adjustment
Flow Rates from 5 GPM to 300 GPM
Compact Footprint – Space-Saving Design
Corrosion-Free Base Construction

Proudly Made in the USA
All OilTrap systems are manufactured and shipped directly from our facility in Tumwater, Washington.

OilTrap System Features – Advanced Wash Water Recycling Solutions

Standard systems from 5 GPM to 50 GPM
Custom systems from 50 GPM and up.

Advancements in the last 20 years

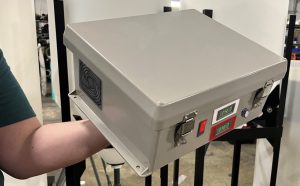

Power Supplies
Engineered exclusively for electrocoagulation systems, each unit combines the power supply and cell controller into one compact module. Designed for reliability and control, it supports full PLC automation with adjustable DC voltage and amperage, ensuring accurate and efficient water treatment performance.

Touchscreen Interface
Now standard across all systems, our 12.9” touchscreen interface streamlines operations. View diagnostics, adjust settings, and receive factory support—all with a Wi-Fi connection for remote access and updates.

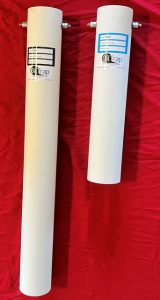

High-Efficiency Electro-Cells
OilTrap’s electrocoagulation cells are easy to replace (under 2 minutes), with no cleaning, scaling, or scraping. A 20″ compact cell option is now available for 3–5 GPM systems, offering modular efficiency for low-volume operations.

External Pumps
All systems feature external, corrosion-resistant pumps with ceramic and stainless impellers. Designed for easy maintenance, these pumps include quick disconnects and digital flow control.

Float Sensor Trees
Installed since 2015, float sensor assemblies can be removed as a single unit with a waterproof connector. This design simplifies servicing and ensures accurate water level detection.

Sludge Manangement Made Simple
Enhance your wash bay with high-capacity sludge bags designed for easy handling and minimal disruption. Each bag weighs approximately 30 lbs, can be changed while the system is running, and is easily removed with one hand. The design prevents overspray and supports continuous, mess-free operation.

Cone Bottom Tanks
All new systems come equipped with cone bottom tanks that ensure fast, efficient drainage and simplified winterization. A single-valve cleanout and air-actuated valves handle periodic sludge buildup automatically. With only level sensors inside the tank, there’s no internal equipment to maintain—eliminating the mess and maintenance hassles of outdated flat-bottom designs.

Integrated Separators
Designed for clean operation and easy upkeep, each separator includes a quick-swap sweep assembly that can be replaced in under five minutes. With simple water level adjustment and a cone bottom tank for efficient sludge removal, these units deliver reliable separation and minimal maintenance downtime.
