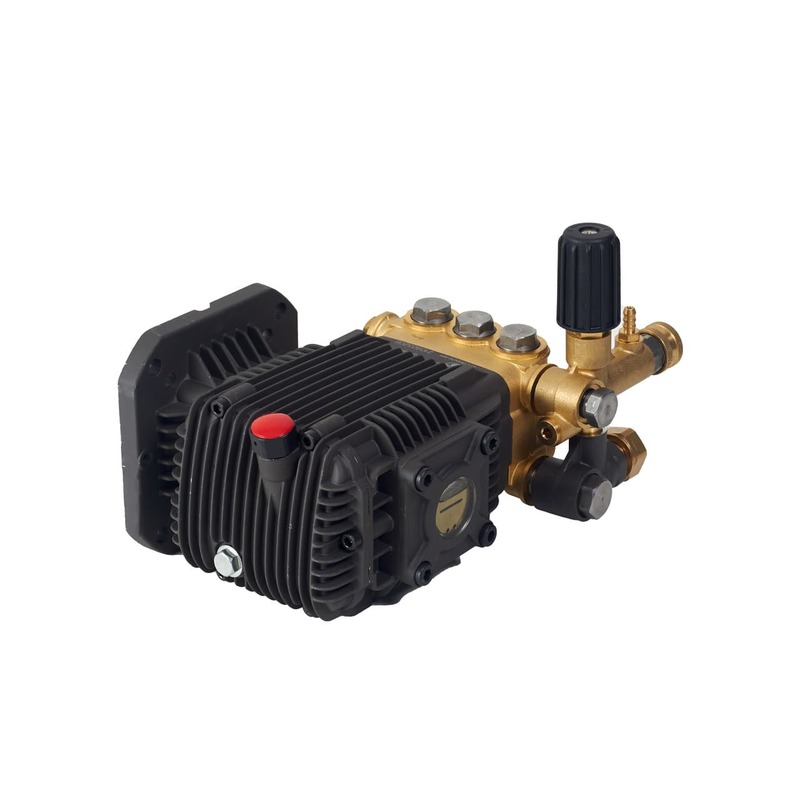

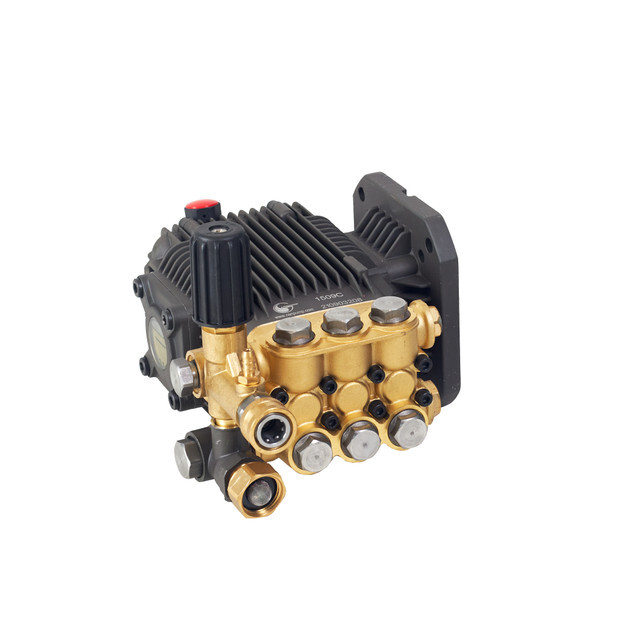

Canpump CF 1522 E, 1500 psi @ 2.2 GPM, 322052

Canpump CF 1522 E, 1500 PSI @ 2.2 GPM, 322052, is a high-efficiency triplex plunger pump kit, specifically designed for 2 hp electric motors. This model operates at a half-speed RPM and is compatible with motors running at up to 1,750 RPM. It includes a detachable unloader valve and a built-in water filter.

Specifications:

• Model: CF 1522 E (formerly 3WZ-1509C)
• Pressure: 1500 PSI (105 bar)
• Flow Rate: 2.2 US GPM (8.3 L/min)
• Power Requirement: 2 HP
• RPM: Half speed
• Pump Mechanism: Triplex plunger
• Shaft Diameter: 5/8 inch
• Oil Grade: SAE 15W-40

Features:

• Detachable Unloader Valve: Bolt-on, pressure-adjustable with 20:1 detergent injector.
• Inlet/Outlet: Standard ¾″ garden hose inlet and quick-connect outlet.
• Compatibility: Works with direct-drive electric motors conforming to NEMA 56, 56C, or 56H standards with ⅝″ shafts.
• Additional Inclusions: Detergent tube with strainer, built-in water filter, and operating manual with a spare parts list.
