E.100254 BRUTE JETTER

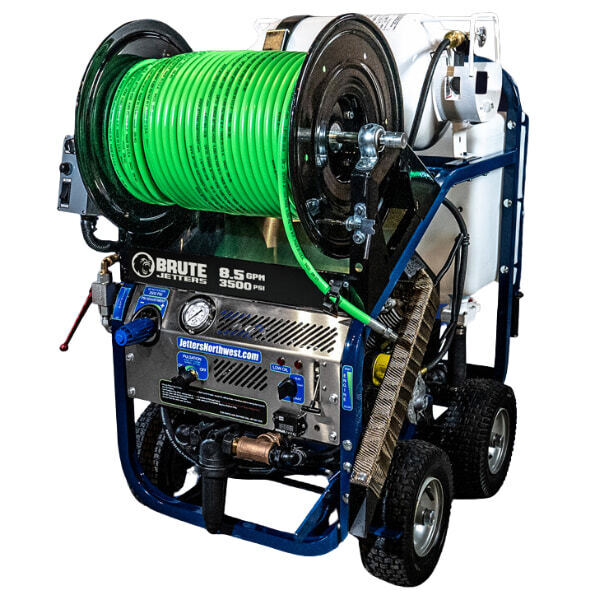

Brute Propane Cart Jetter 8.5gpm/3500psi w/12v Variable Speed Reel

All controls are also conveniently Panel-mounted below the Hose-Reel for efficient operation:

Engine Key-Switch and Engine Throttle are located on panel, near the jetting controls.

Adjustable Pressure Regulator: provides a wide range of adjustment and enables the use of Remote Shutoff-Valves or Foot-Pedals

Pressure Gauge (liquid-filled) on the panel shows working pressure

Pulsation-Control on panel adjusts from light vibration to full pulse mode

3-way Jetting-Control Valve: directs water to the cleaning-nozzle or dumps pressure by bypassing water back to the tank, keeping the pump cool

Engine Hour Meter/Tachometer: helps track maintenance intervals & shows engine RPM while running

Modular Frame Design can be configured for use as a portable jetter or as a compact mountable skid Jetter, either option you choose can be changed later as your needs change

Welded Steel Roll Cage Frame with Powder-Coated finish

Heavy-Duty Hose Reel, welded steel A-Frame style with pillow block bearings 5000psi rated hose reel swivel with grease fitting

300 ft premium Jetting Hose, Made in USA

4 Nozzle set included: penetrator, rotator, pusher, flusher

12 gallon water buffer tank with internal float valve to prevent over-filling. Suitable for use as a buffer tank and/or an antifreeze reservoir able to draw water from a larger tank (portable and mountable tanks are available options)

Kohler Propane Fueled Engine

single 30# LP Fuel Tank (Vapor Propane Tank)

UDOR “Super_Duty” Triplex Plunger Pump

Also includes: safety nozzle extension, accessory-Adapter and orifice Cleaner tool

Dry Weight: 498 lbs

Dimensions: 45″L x 31″W x 45″H
