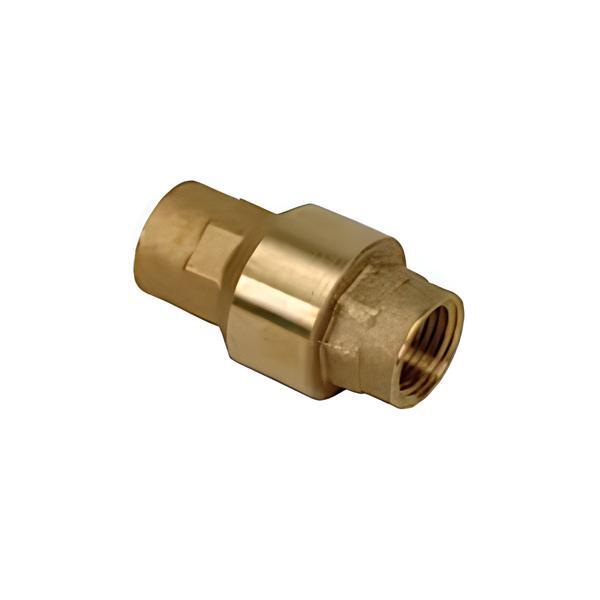

The Spring Check Valve (Part #PFXSCVG) is designed for efficient, reliable fluid control across a range of conditions. Featuring a brass body with 1" FNPT connections, this valve includes a stainless steel spring and neoprene o-ring seal for a bubble-tight shutoff. With a low cracking pressure of just ½ PSI and a patented disc guide, it offers quick seating action and minimal head loss for enhanced performance. Fully lead law compliant and certified for safe use, this spring check valve can be installed in horizontal or vertical orientations, including vertically down.
Specifications:
- Material: Brass
- End Connections: 1" FNPT
- Seal Type: Neoprene O-Ring
- Spring Material: Stainless Steel
- Cracking Pressure: ½ PSI
- Temperature Range: 10°F to 210°F
- Mounting Positions: Horizontal or Vertical (Including Down)
- Lead Law Compliance: Certified & Compliant
- Height: 1-15/16"
- Length: 2.76"
