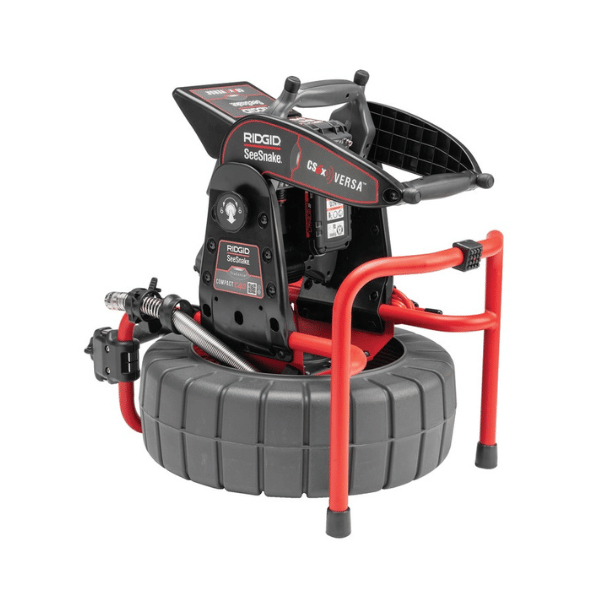

Ridgid SeeSnake Compact C40 with TruSense® Technology delivers precision pipe inspection in a compact, agile form factor. Designed for use with CS6x Versa and compatible docking systems, the C40 packs essential inspection capabilities into a portable frame. With a 131′ flexible push cable and self-leveling 25 mm camera, it excels in small diameter and tight-turn applications.
Key Features:
- Quick-connect docking allows fast pairing with SeeSnake CS6x Versa, Via®, and HQx Dock systems.
- Sturdy, lightweight frame offers easy transport while providing stability during push and retrieval.
- Integrated FleXmitter® sonde (512 Hz) extends locating range while maintaining excellent maneuverability.
- HDR (High Dynamic Range) sensor enhances visibility in low-light or high-glare pipe conditions.
- TiltSense™ displays camera pitch angle on compatible monitors or via the HQx Live mobile app.
- Pipe guides help center the camera inside the pipe, improving inspection accuracy and video clarity.
Best Application: The SeeSnake Compact C40 is optimized for inspections in smaller diameter pipes (1.5″ to 6″). Its 131-foot (40 m) flexible push cable allows it to navigate tighter bends, making it ideal for residential plumbing, drain lines, and confined access points.
| Specifications | SeeSnake Compact C40 |
|---|---|
| Rated Pipe Capacity | 1.5″ to 6″ (38 mm to 152 mm) |
| Max Cable Length | 131′ (40 m) |
| Minimum Bend Radius | 2.5″ (64 mm) |
| Camera Type | Self-Leveling TruSense |
| Camera Diameter | 1″ (25 mm) |
| Camera Length | 1″ (25 mm) |
| Sonde Frequency | 512 Hz |
| Sonde Type | FleXmitter |
| Distance Counter | TruSense Counter |
| Data Communication | Two-Way |
| Catalog No. | Model | Weight (lb) | Weight (kg) |
|---|---|---|---|

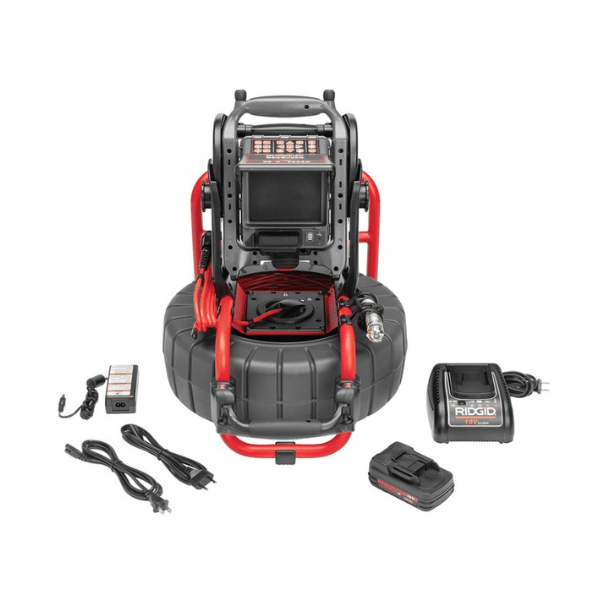

| 63828 | SeeSnake Compact C40 System with 1 Battery and 1 Charger | 27.1 | 12.3 |
| 63823 | SeeSnake Compact C40 System | 23.3 | 10.5 |
| 63668 | SeeSnake Compact C40 (Reel Only) | 17 | 8 |
