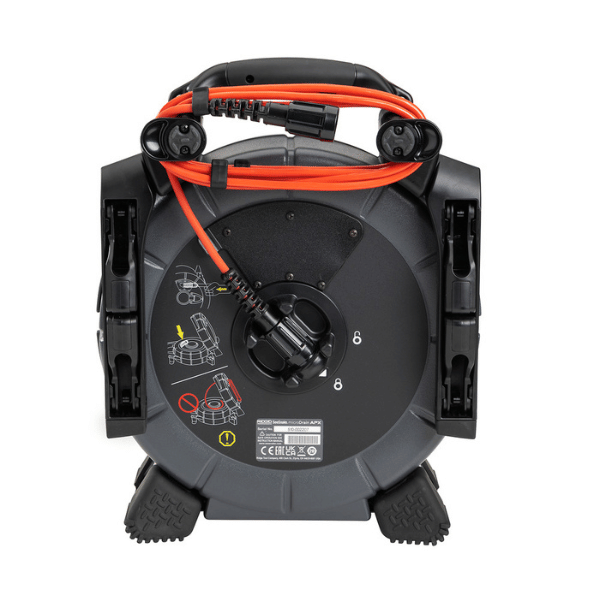

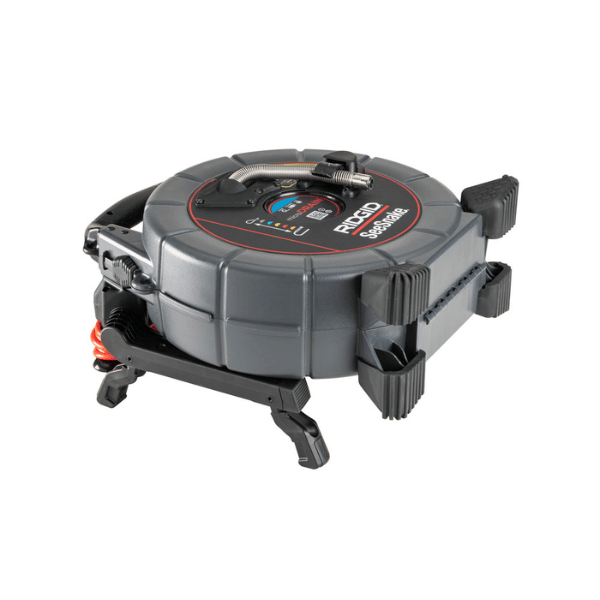

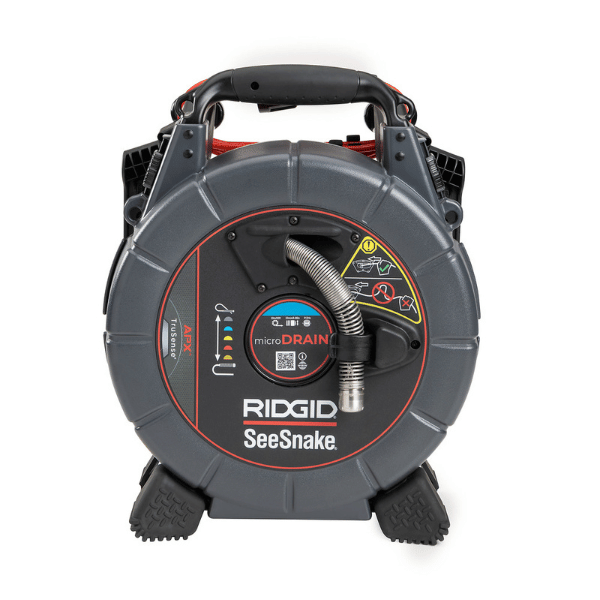

Ridgid SeeSnake microDrain® is an ultra-compact inspection camera system built for navigating tight bends and narrow piping. With its flexible 65-foot push cable and 22 mm fixed camera, it provides fast and accurate inspections in traps, sinks, tubs, and P-traps. Compatible with all SeeSnake monitors and the micro CA-350, the microDrain is engineered for mobility and access in the smallest of spaces.
Key Features:
- Half the size of standard inspection systems, making it ideal for tight access and quick transport.
- Compatible with all SeeSnake monitors and the micro CA-350 inspection camera.
- Interchangeable drum can be swapped with microReel™ and nanoReel® units for flexible jobsite use.
- Integrated 512 Hz in-camera sonde for reliable underground line locating.
- Includes pipe guide kit for improved image centering in small-diameter lines.
Best Application: The microDrain system is perfect for 1.25″ to 3″ pipes and excels in plumbing jobs involving tight bends and traps. Its flexible cable and small camera head allow it to go where other inspection systems can’t—ideal for toilet traps, sinks, and P-traps.
| Specifications | SeeSnake microDrain |
|---|---|
| Rated Pipe Capacity | 1.25″ to 3″ (32 mm to 76 mm) |
| Max Cable Length | 65′ (20 m) |
| Minimum Bend Radius | 0.75″ (19.1 mm) |
| Camera Style | Fixed |
| Camera Diameter | 0.87″ (22 mm) |
| Camera Length | 0.8″ (19 mm) |
| Sonde Frequency | 512 Hz |
| Sonde Type | In-Camera |
| Distance Measurement | Built-in Counter* |
| Data Communication | One-Way |
| Catalog No. | Model | Weight (lb) | Weight (kg) |
|---|---|---|---|
| 37468 | microDrain D65S Reel (SeeSnake) (NTSC) | 16 | 7.3 |
| 37473 | microDrain D65S Reel (micro CA-350) (NTSC) | 9.8 | 4.4 |
| 40788 | microDrain D65S/micro CA-350 System (SeeSnake) (NTSC) | 11.1 | 5 |
