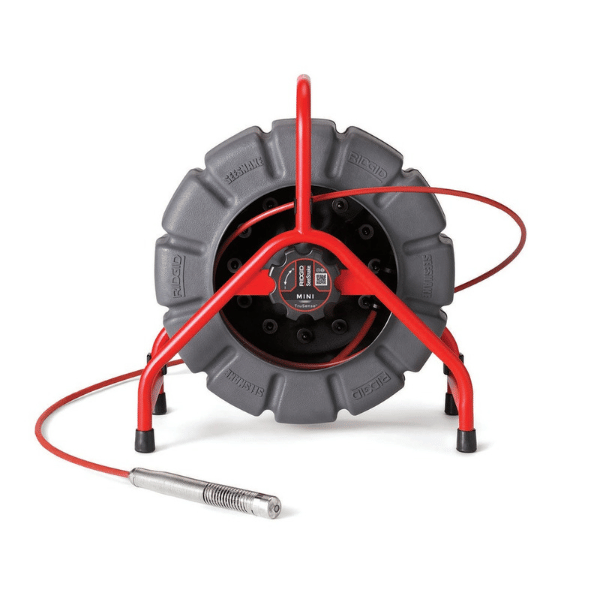

Ridgid SeeSnake Mini with TruSense® Technology is a compact, professional-grade inspection reel engineered for precision in small to mid-sized lines. With a 30 mm camera head and 200 feet of push cable, this system offers exceptional image clarity, directional awareness, and flexibility to handle routine and complex pipe inspections.
Key Features:
- High-output LEDs deliver crisp visuals and durability in low-light and high-moisture conditions.
- Optional self-leveling camera keeps the image upright, enhancing visual orientation during inspections.
- Integrated 512 Hz FleXmitter® sonde enables accurate underground locating without compromising maneuverability.
- HDR image sensor provides high-contrast, well-lit footage in varying pipe environments.
- TiltSense™ feature shows the camera’s pitch angle when connected to CSx monitors or the HQx Live mobile app.
- Pipe guide accessories help keep the camera centered for improved footage in larger diameter pipes.
Best Application: The SeeSnake Mini is optimized for everyday inspection work where both flexibility and reach are important. Its moderately stiff push cable allows for effective navigation through tight turns, making it a reliable choice for residential, commercial, and light industrial pipe runs up to 200 feet.
| Specifications | SeeSnake Mini | |
|---|---|---|
| Rated Pipe Capacity | 1.5″ to 8″ (38 mm to 203 mm) | |
| Max Cable Length | 200′ (61 m) | |
| Minimum Bend Radius | 3″ (76 mm) | |
| Camera Type | Fixed TruSense | Self-Leveling TruSense |
| Camera Diameter | 1.2″ (30 mm) | |
| Camera Length | 1.3″ (32 mm) | 1.5″ (25 mm) |
| Sonde Frequency | 512 Hz | |
| Sonde Type | FleXmitter | |
| Distance Counter | TruSense Counter | |
| Data Communication | Two-Way | |
| Catalog No. | Model | Weight (lb) | Weight (kg) |
|---|---|---|---|
| 63628 | 200′ Mini, 30 mm SL TruSense | 26 | 11.8 |
| 63633 | 200′ Mini, 30 mm TruSense | 26 | 11.8 |
