391324

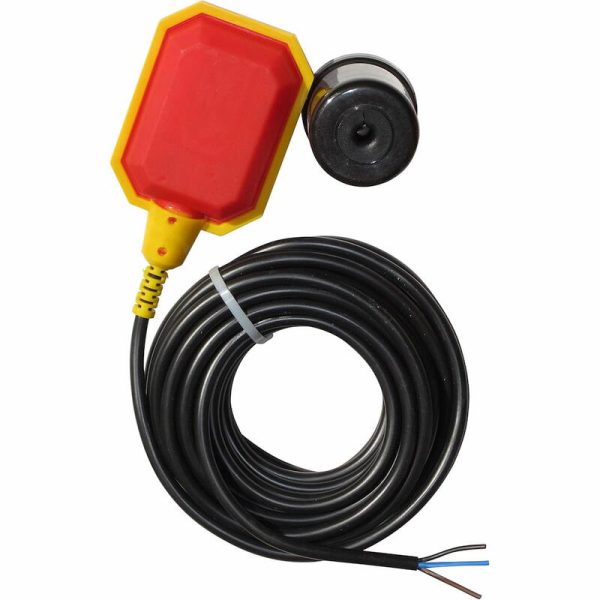

Float Switch, 33′ Water Level Sensor, 13.3 Amps, 1/2 HP, 1153

$289.50

Float Switch, 33′ Water Level Sensor, 13.3 Amps, 1/2 HP — Adjustable tether, Honeywell® Micro Switch, 120V/220V AC & 12V/24V DC compatible, IP68 rated.

SKU: 19559416 Category:

Control water flow into and out of tanks, valves, sump pumps, and septic systems with this 33' Float Switch. Rated for up to 13.3 Amps and 1/2 HP, this level sensor helps prevent overflows and supports both fill and empty functions (selectable via wiring). It is compatible with 120V/220V AC (up to 2 HP) and 12V/24V DC systems, offering versatility across a wide range of applications.

This float switch includes a durable non-corrosive polypropylene housing and a PVC/thermoplastic jacketed cable with adjustable tethering up to 12". A Honeywell® UL-recognized micro switch rated for 100,000+ cycles ensures reliable long-term use. Its double O-ring sealed internal stainless steel ball mechanism provides accurate and dependable switching, and an optional counterweight is included.

Specifications:

  • Voltage Compatibility: 120V/220V AC (up to 2 HP), 12V/24V DC
  • Max Current: 13.3A non-continuous / 12A continuous
  • Switch Type: UL-recognized Honeywell® Micro Switch (100,000+ cycles)
  • Function Modes: Fill or Empty (selectable via wiring)
  • Cord Length: 33 feet (10 meters)
  • Cable Jacket: PVC / Thermoplastic
  • Housing Material: Non-toxic, corrosion-resistant polypropylene
  • Internal Mechanism: Double O-ring sealed with stainless steel ball
  • Installation: Adjustable tether (up to 12") with optional counterweight
  • Temperature Range: 32°F to 140°F (0°C to 60°C)
  • Certifications: CE, IP68, IEC 60730-1 + IEC 60730-2-16
  • Product Dimensions: 6.5" x 1.5" x 6.5"
  • Switch Body Dimensions: 4.1" x 3" x 1.6" (105 x 78 x 41 mm)
  • Power Source: AC/DC (no plug – wire leads)
  • Manufacturer: Sump Alarm, Inc.
  • Installation Method: Floor-mounted
  • Weight: 2.4 lbs
  • Warranty: 5-Year Manufacturer Warranty
