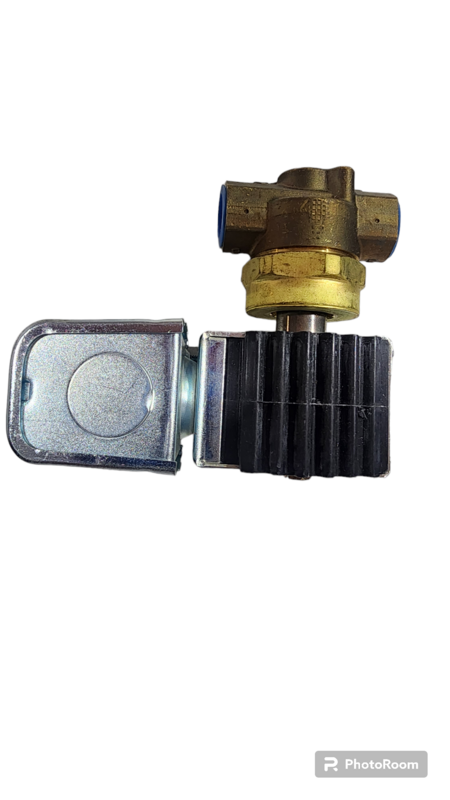

DEMA A413P.6 Solenoid Valve
$99.83
This A413P model is a solenoid valve that operates with a pilot-piston mechanism, suitable for general-purpose applications. It’s compatible with water, air, light oil, and other non-corrosive fluids but should not be used with gas or potentially dangerous, explosive materials.
The valve functions by moving the stem and plunger to open a port, which decreases pressure above the piston, thus opening the primary valve port. These Dema pilot-piston solenoid valves can be used with pipe sizes ranging from 3/8″ to 1″ — for additional sizes, refer to the Related Products section.
Specifications for the 3/8″ NPT valve include:
– A maximum fluid temperature tolerance of 200 degrees Fahrenheit and an ambient temperature tolerance of 120 degrees Fahrenheit.
– The CV flow factor stands at 2.00.
– It features an orifice with a diameter of 0.313 inches.
– The valve is made from brass, with a stainless steel seat and a Teflon seal.
– It operates with a 120V AC coil.
– The maximum pressure capacity is 150 PSI.
– The valve remains normally closed when not energized.
