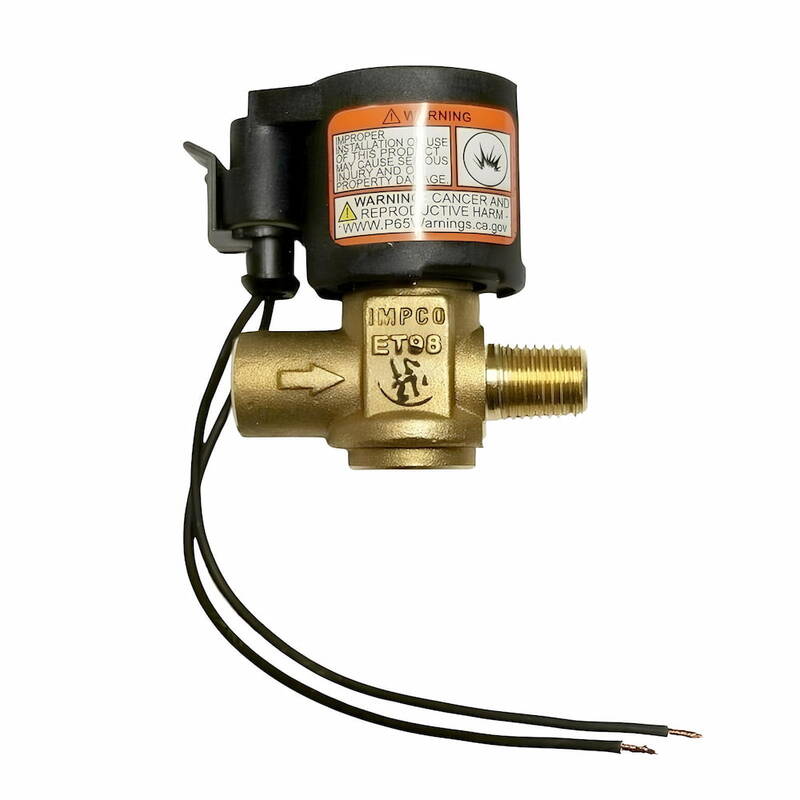

The Lock Off Valve (Part ET98-52295, also known as ET98-50362-001) is a 12V DC electronic shutoff valve designed for use with both LPG (liquid or vapor) and low-pressure Natural Gas. This normally closed valve opens when energized and is built to handle up to 315 psi, making it ideal for high-pressure fuel system applications. Engineered for durability and performance, it features a robust flow capacity and is housed in a compact, lightweight body.
Specifications:
- Fuel Type: LPG (liquid or vapor) or Natural Gas (low-pressure vapor)
- Max Inlet Pressure: 315 psi (21.72 Bar)
- Flow Capacity: 24,000 NL/H (105.6 GM) at 400 kPa air
- Power Requirement: 12V DC / 15.5 Watts (1.3 Amps)
- Temperature Range: -40ยฐF to +250ยฐF (-40ยฐC to +121ยฐC)
- Filtration Requirement: 40 microns
- Recommended Mounting: Vertical orientation
- Certifications: UL recognized (contact us for ECE approval details)
- Weight: Approx. 12 oz. (470 grams)
